Entrance Control Swing Barrier Gate
Effectively enhances entrance management efficiency and security

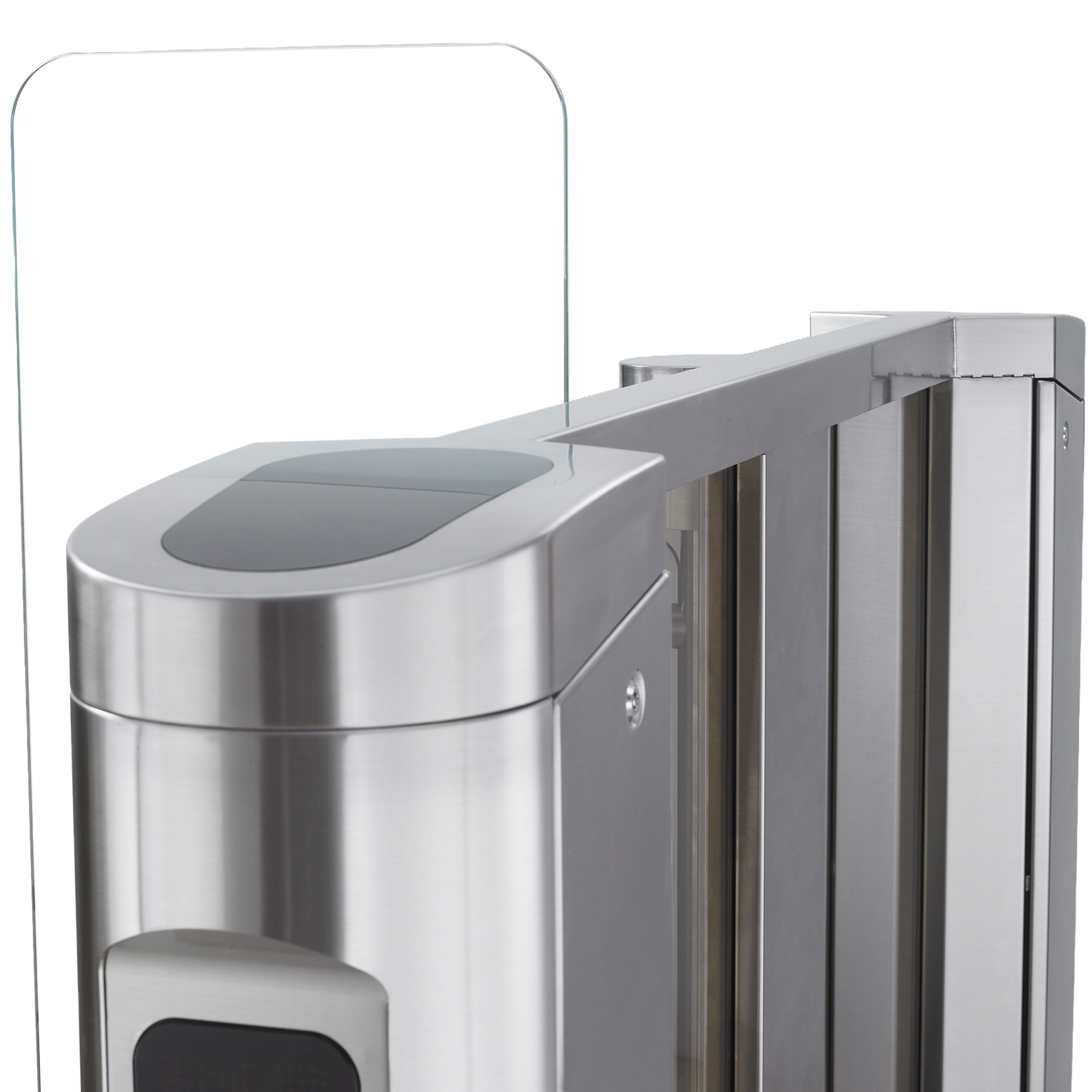

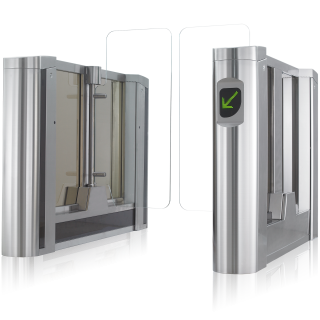

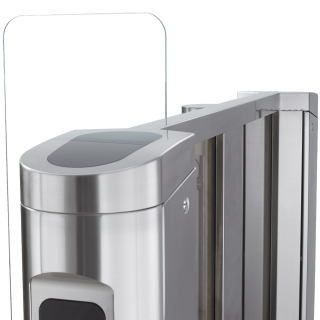

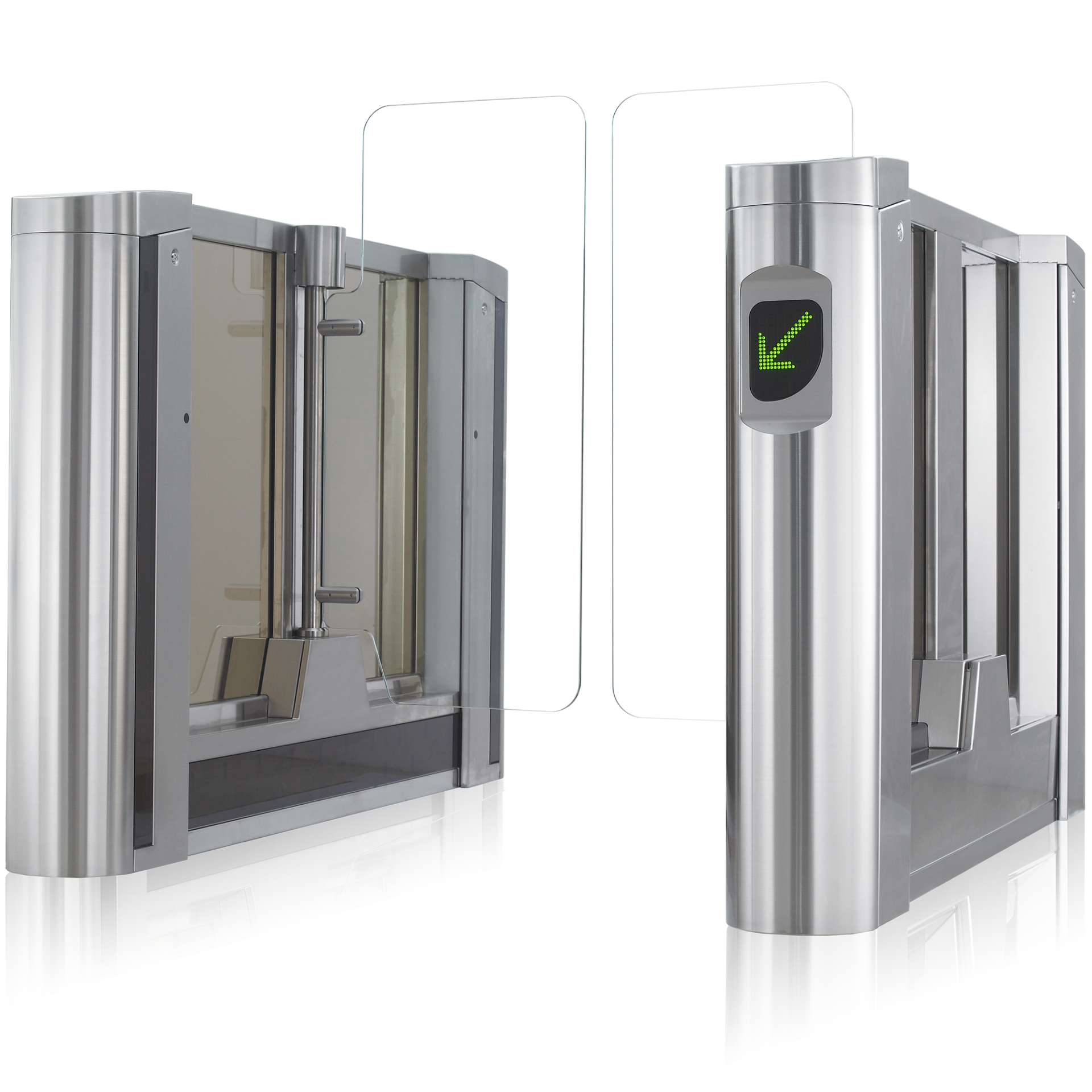

Entrance Control Swing Barrier Gate (SF-160)
The Entrance Control Swing Barrier Gate (SF-160) is an intelligent access control system designed for parking lots, campuses, and building entrances. It integrates infrared detection, fast gate operation, and multiple verification systems to effectively manage pedestrian and vehicle access, enhancing both traffic efficiency and security management.
Features and Functions：
1. High-Efficiency Access Control
．Utilizes infrared sensing technology to detect the presence of pedestrians or vehicles, enabling rapid gate opening and closing for bidirectional access control.
．Effectively reduces congestion and prevents tailgating or unauthorized entry.
2. Multi-Verification Integration
．Compatible with facial recognition devices, fingerprint scanners, ticket/IC card readers, and other authentication systems.
．Access permissions can be flexibly configured according to the needs of parking facilities or campuses.

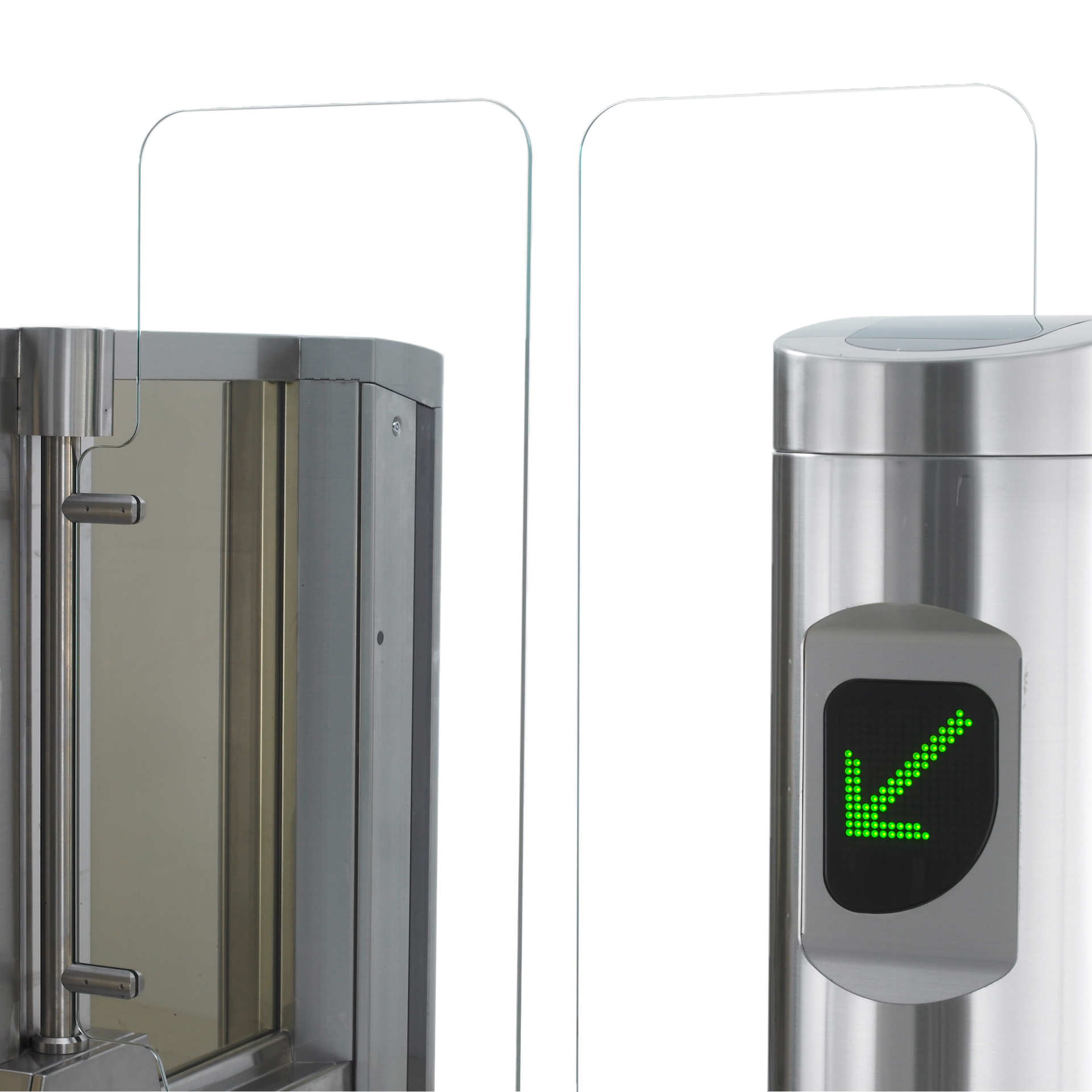

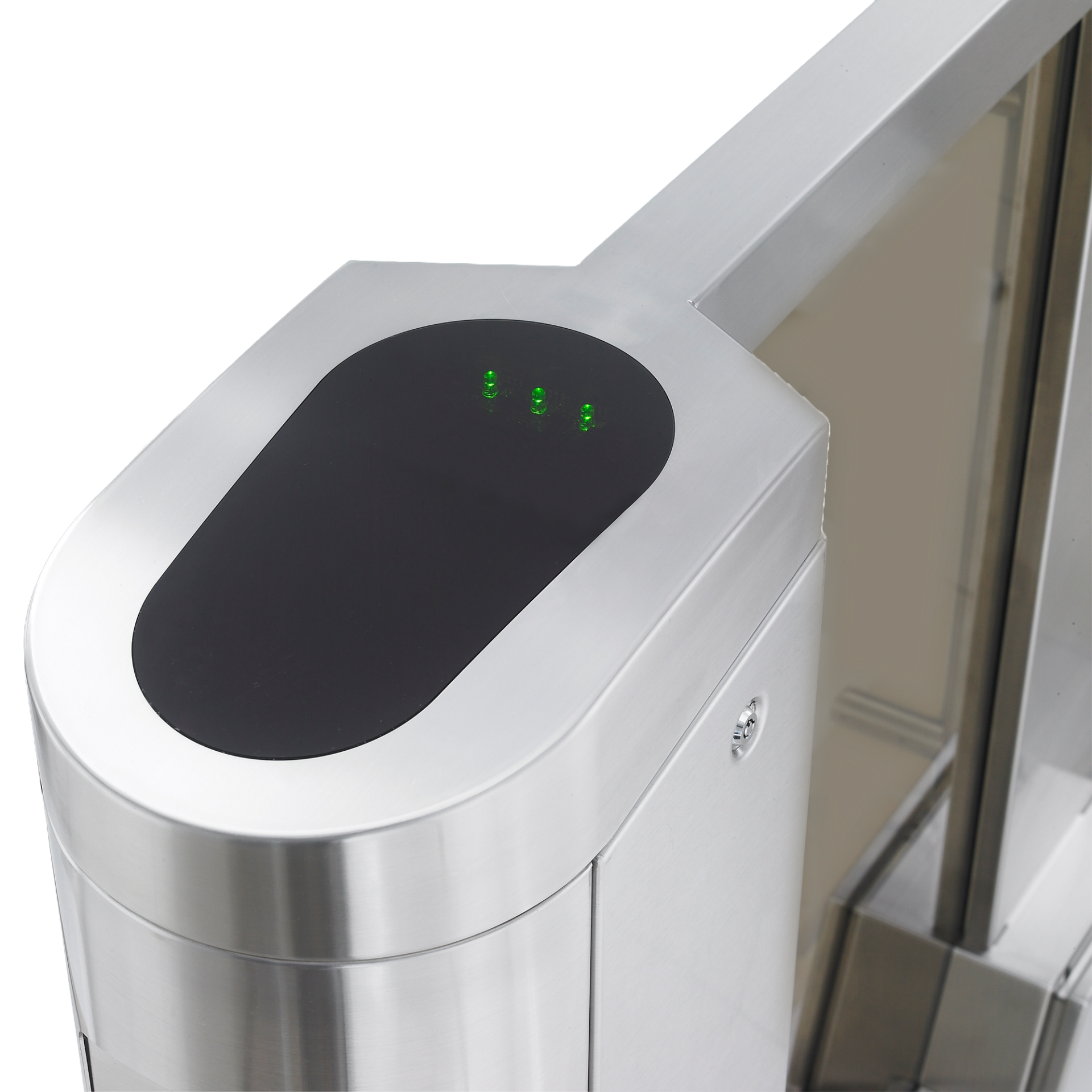

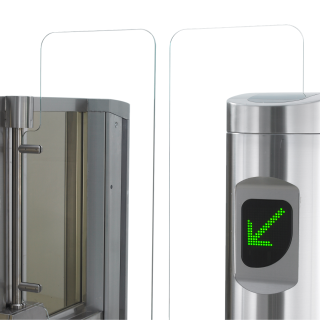

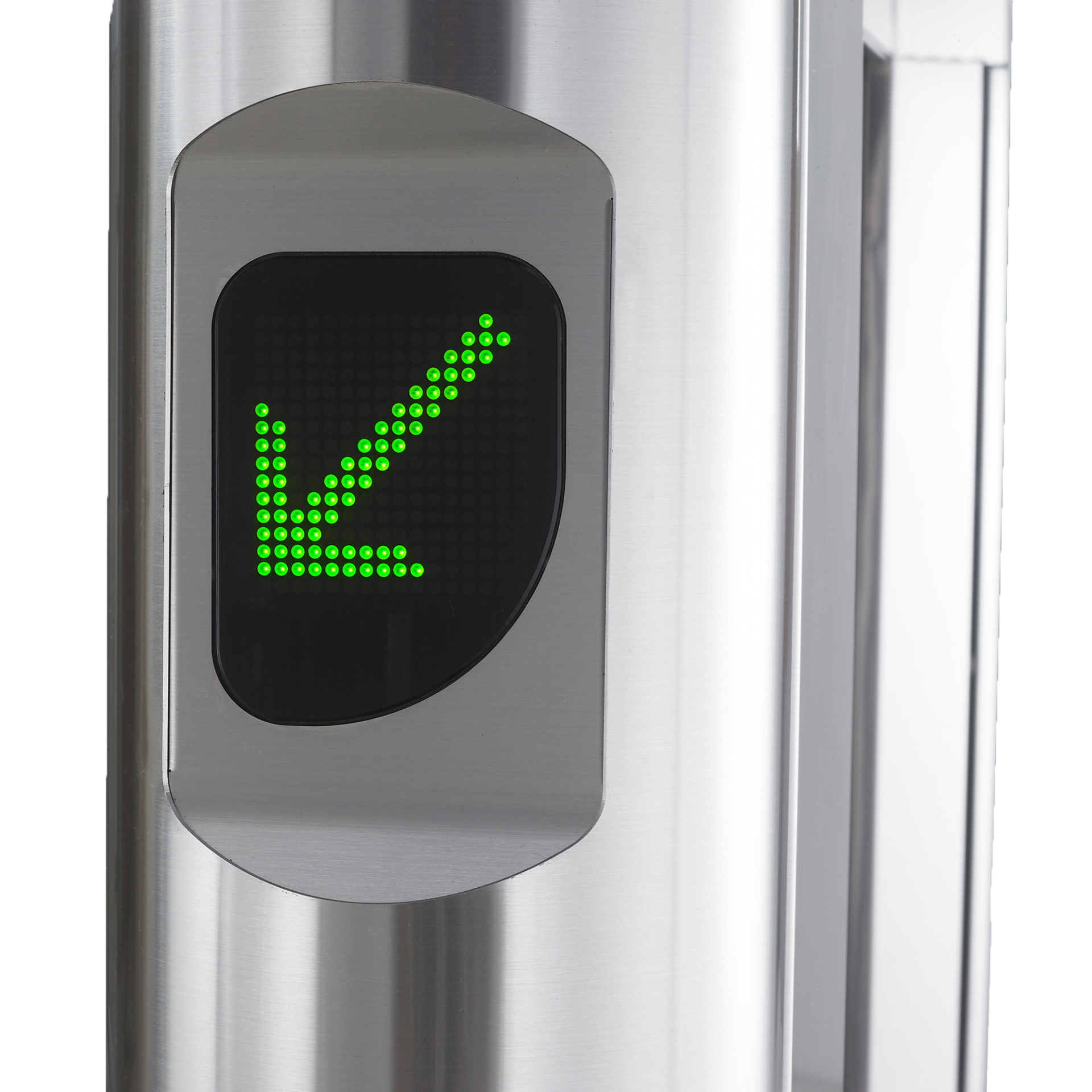

3. LED Guidance Indicators
．Equipped with LED status indicators that clearly display verification and access status, guiding users through the entry and exit process efficiently.
4. Safety Protection and Alarm System
．In the event of abnormal entry or tailgating attempts, the alarm system automatically activates and notifies management personnel while immediately closing the gate to prevent unauthorized intrusion.
5. Elegant Appearance and Customizable Design
．Features a refined and elegant exterior that blends naturally into various environments.
．Offers multiple customizable surface finishes, including color coating, polished metal, natural stone texture imitation, and titanium plating, combining aesthetics with security.
6. Durable and Stable Construction
．Built with high-strength materials, providing impact resistance, waterproofing, and dustproof protection for long-term stable operation.
7. Applicable Locations
．Train stations and transportation hubs
．Commercial buildings and corporate campuses
．Banks and VIP access areas
．Smart facilities requiring high-level security
※Product specifications are subject to the actual shipment. Catalog images represent the standard model.
The Entrance Control Swing Barrier Gate (SF-160) is an intelligent access control system designed for parking lots, campuses, and building entrances. It integrates infrared detection, fast gate operation, and multiple verification systems to effectively manage pedestrian and vehicle access, enhancing both traffic efficiency and security management.
Features and Functions：
1. High-Efficiency Access Control
．Utilizes infrared sensing technology to detect the presence of pedestrians or vehicles, enabling rapid gate opening and closing for bidirectional access control.
．Effectively reduces congestion and prevents tailgating or unauthorized entry.
2. Multi-Verification Integration
．Compatible with facial recognition devices, fingerprint scanners, ticket/IC card readers, and other authentication systems.
．Access permissions can be flexibly configured according to the needs of parking facilities or campuses.
3. LED Guidance Indicators
．Equipped with LED status indicators that clearly display verification and access status, guiding users through the entry and exit process efficiently.
4. Safety Protection and Alarm System
．In the event of abnormal entry or tailgating attempts, the alarm system automatically activates and notifies management personnel while immediately closing the gate to prevent unauthorized intrusion.
5. Elegant Appearance and Customizable Design
．Features a refined and elegant exterior that blends naturally into various environments.
．Offers multiple customizable surface finishes, including color coating, polished metal, natural stone texture imitation, and titanium plating, combining aesthetics with security.
6. Durable and Stable Construction
．Built with high-strength materials, providing impact resistance, waterproofing, and dustproof protection for long-term stable operation.
7. Applicable Locations
．Train stations and transportation hubs
．Commercial buildings and corporate campuses
．Banks and VIP access areas
．Smart facilities requiring high-level security
※Product specifications are subject to the actual shipment. Catalog images represent the standard model.
細節介紹
| Power Input | 110 ~ 220 Vac, 50/60 Hz |
|---|---|
| Cabinet Material |
SUS-304 stainless steel plate, 1.5 mm thick, with a brushed stainless steel surface. (Optional: SUS-316) |
| Gate Panel Material | 10 mm transparent tempered glass gate panel |
| Digital Control | Three selectable modes: Controlled / Prohibited / Free |
| Sensors | 14 sets |
| Remote Control |
Compatible with RS-485 and TCP/IP (supports remote door control and access management) |
| Cabinet Dimensions | 1600 ( L ) X 200 ( W ) X 1000 ( H ) mm |
| Gate Panel Height | 1000 / 1200 / 1800mm |
| Passage Width | 600 / 700 / 800 / 900mm |
| Operating Humidity | 0 ~ 85% |
| MTTR | ≦ 15 minutes |
| MCBF | ≧ 1,500,000 次 |
| Certifications | CE |
