U-Type Tripod Turnstile Gate-Base
Specifically designed to integrate with management systems

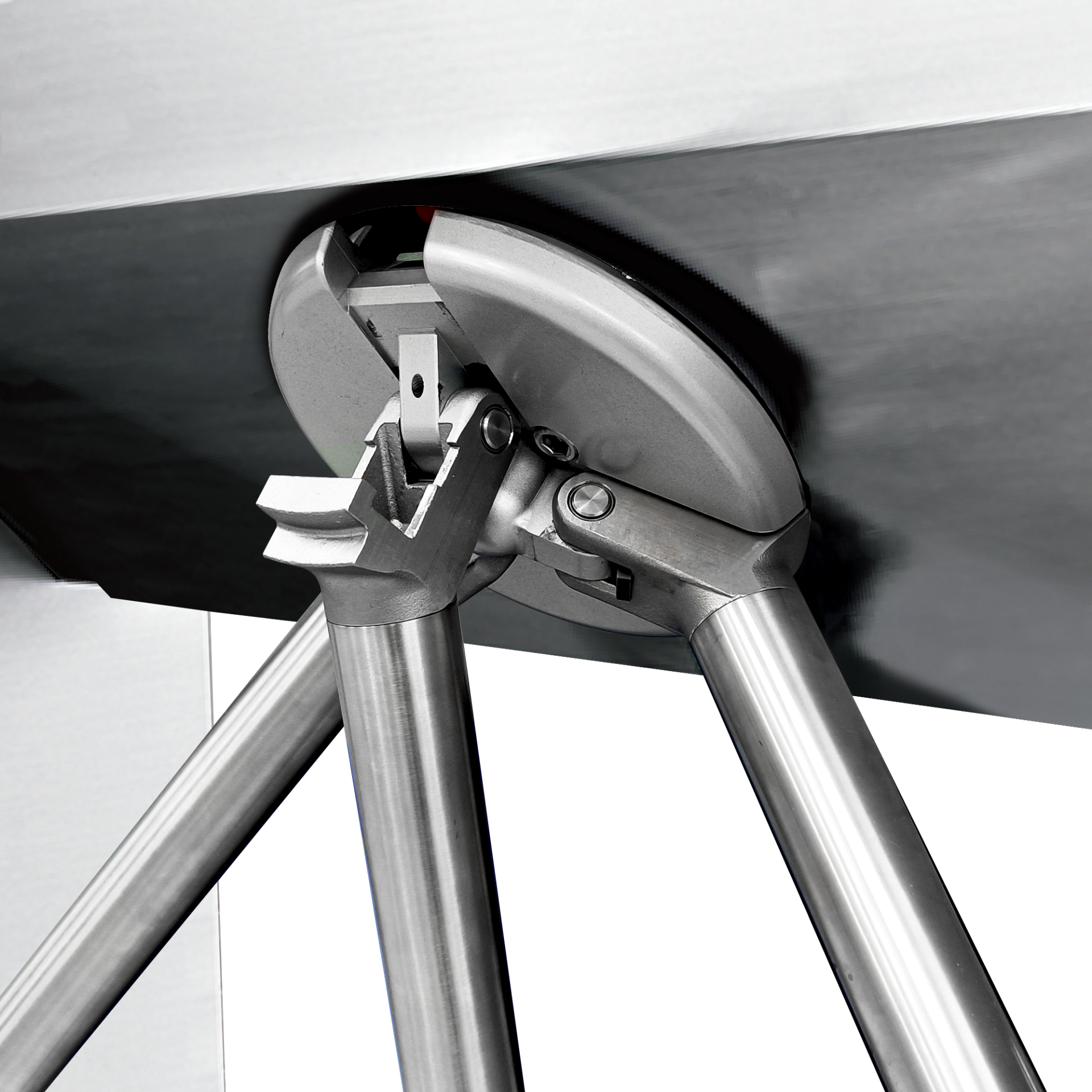

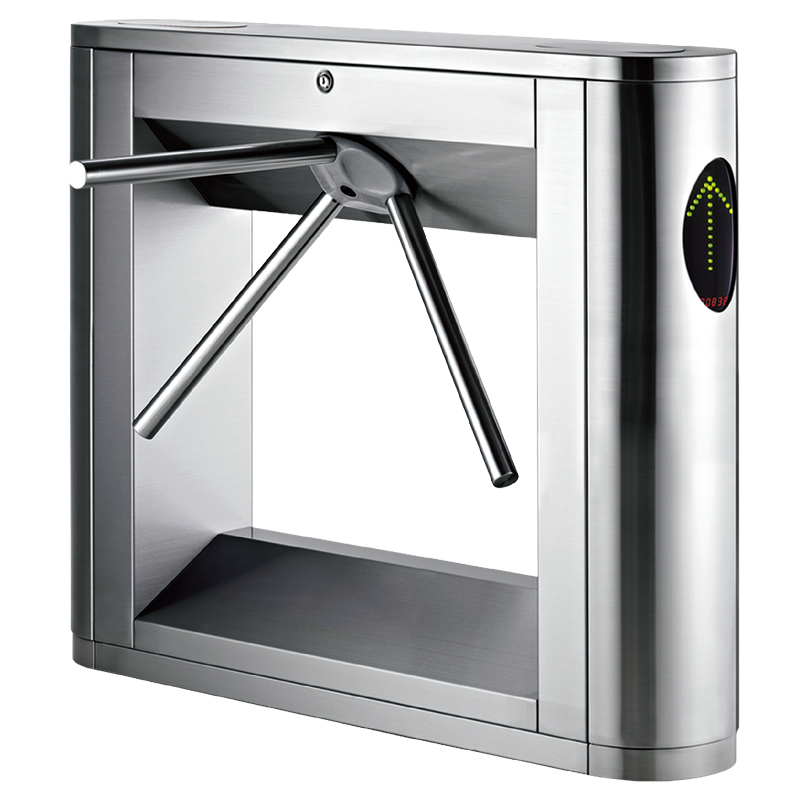

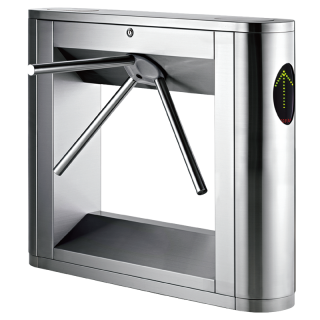

The U-shaped tripod turnstile base is available in two models: non-drop arm (RT-320) and drop arm (FT-320). It is a stable and well-controlled access device featuring a classic tripod mechanism combined with a U-shaped body structure, providing a clear and efficient pedestrian flow control system. Designed with durability and high throughput in mind, it is ideal for continuous operation in public and semi-public areas, and is widely used in locations requiring basic access management and entry counting control.
Functions and Features：

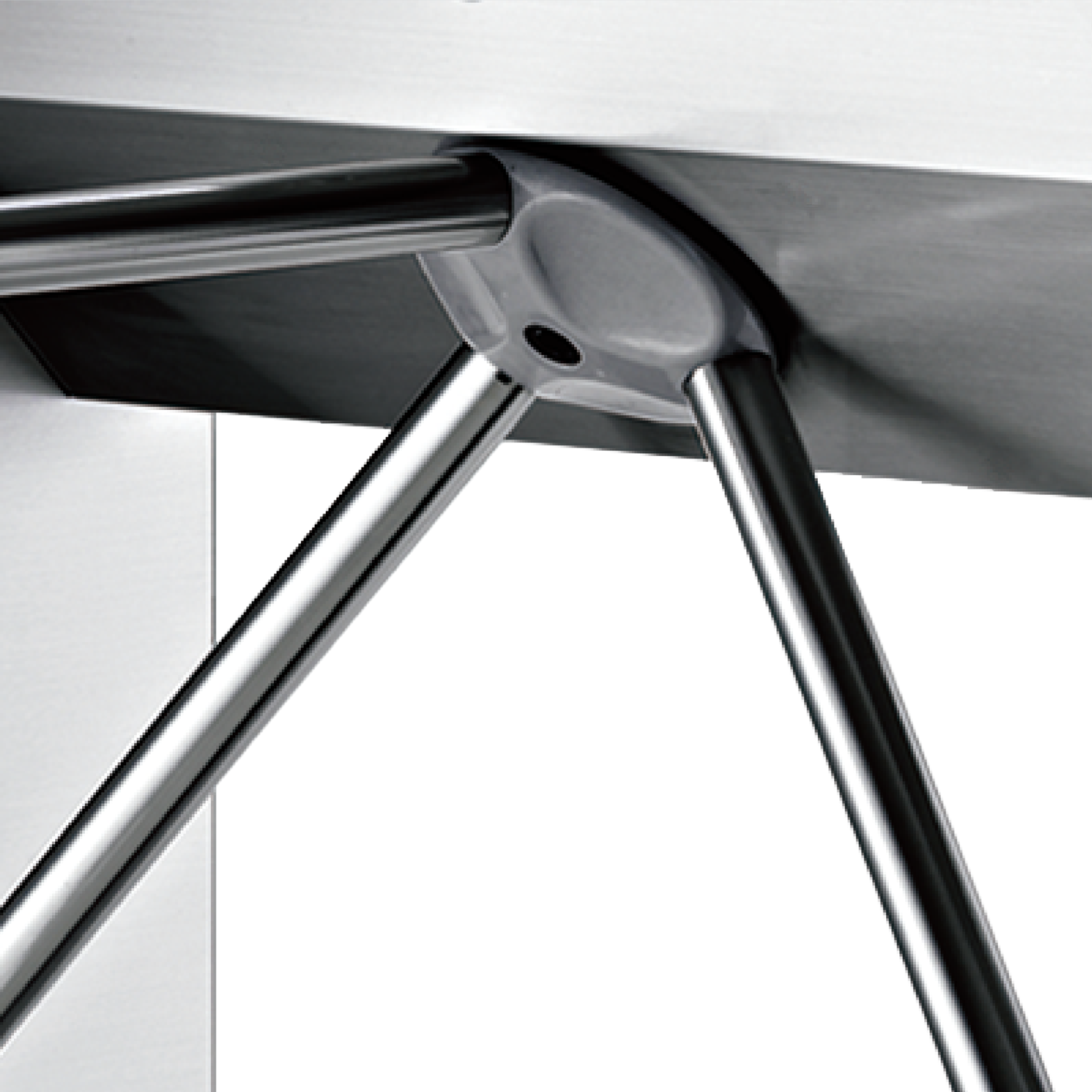

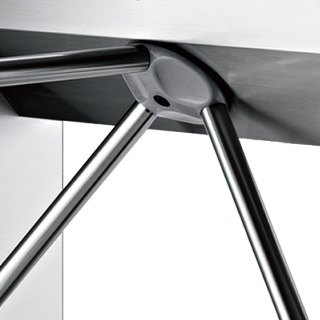

1.Tripod Turnstile Design
．Features a three-arm rotating mechanism with clear passage direction.
．Effectively limits access to one person at a time, preventing unauthorized entry.
2.U-Shaped Body Structure – Stable and Durable
．Robust construction, impact-resistant, and deformation-proof.
．Suitable for high-frequency and long-duration operation environments.
3.Multi-Verification Device Integration
．Compatible with card readers, coin acceptors, ticketing systems, or biometric identification devices.
．Configurable for one-way or two-way access control as required.
4.High-Efficiency Flow Management
．Intuitive operation and fast passage reduce queuing time.
．Ideal for environments requiring ticket validation, entry counting, or basic access control.
5.Power Failure and Emergency Response
．Can be set to automatically unlock or allow free passage during power outages or emergencies.
．Meets public safety and evacuation requirements.
6. Easy Maintenance and Long Service Life
．Simple mechanical design with low failure rate.
．Reduces maintenance costs and enhances overall operational efficiency.
7.Applicable Locations
．Metro stations, train stations, and transportation hubs
．Factories, industrial parks, and employee entrances
．Stadiums, swimming pools, and fitness centers
．Amusement parks, exhibition halls, and ticketing areas
．Schools, dormitories, and public facility entrances
※Product specifications are subject to the actual shipment. Catalog images represent the standard model.
Functions and Features：
1.Tripod Turnstile Design
．Features a three-arm rotating mechanism with clear passage direction.
．Effectively limits access to one person at a time, preventing unauthorized entry.
2.U-Shaped Body Structure – Stable and Durable
．Robust construction, impact-resistant, and deformation-proof.
．Suitable for high-frequency and long-duration operation environments.
3.Multi-Verification Device Integration
．Compatible with card readers, coin acceptors, ticketing systems, or biometric identification devices.
．Configurable for one-way or two-way access control as required.
4.High-Efficiency Flow Management
．Intuitive operation and fast passage reduce queuing time.
．Ideal for environments requiring ticket validation, entry counting, or basic access control.
5.Power Failure and Emergency Response
．Can be set to automatically unlock or allow free passage during power outages or emergencies.
．Meets public safety and evacuation requirements.
6. Easy Maintenance and Long Service Life
．Simple mechanical design with low failure rate.
．Reduces maintenance costs and enhances overall operational efficiency.
7.Applicable Locations
．Metro stations, train stations, and transportation hubs
．Factories, industrial parks, and employee entrances
．Stadiums, swimming pools, and fitness centers
．Amusement parks, exhibition halls, and ticketing areas
．Schools, dormitories, and public facility entrances
※Product specifications are subject to the actual shipment. Catalog images represent the standard model.
細節介紹
| Power Input | AC110 / 220V, 50 / 60Hz, 1Phase |
|---|---|
| Throughput Rate | 30 persons per minute |
| Cabinet Material | SUS-304 stainless steel, 1.5 mm thick, brushed finish |
| Cabinet Dimensions | 1250 ( L ) X 280 ( W ) X 980 ( H ) mm |
| Arm Material | SUS-304 stainless steel, polished finish |
| Arm Dimensions | Outer diameter: 38 mm, length: 480 mm |
| Passage Width |
500~550mm |
| Weight | 55kg |
| MTTR | ≤ 15 minutes |
| MCBF | ≥ 1,000,000 cycles |
| Certification | CE |
