Access Control Equipment | Fast Access Gate Series
Technology Butterfly Gate
Enhancing the office’s technological ambiance according to client requirements to reflect and reinforce their brand value.

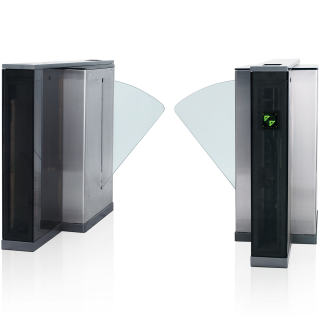

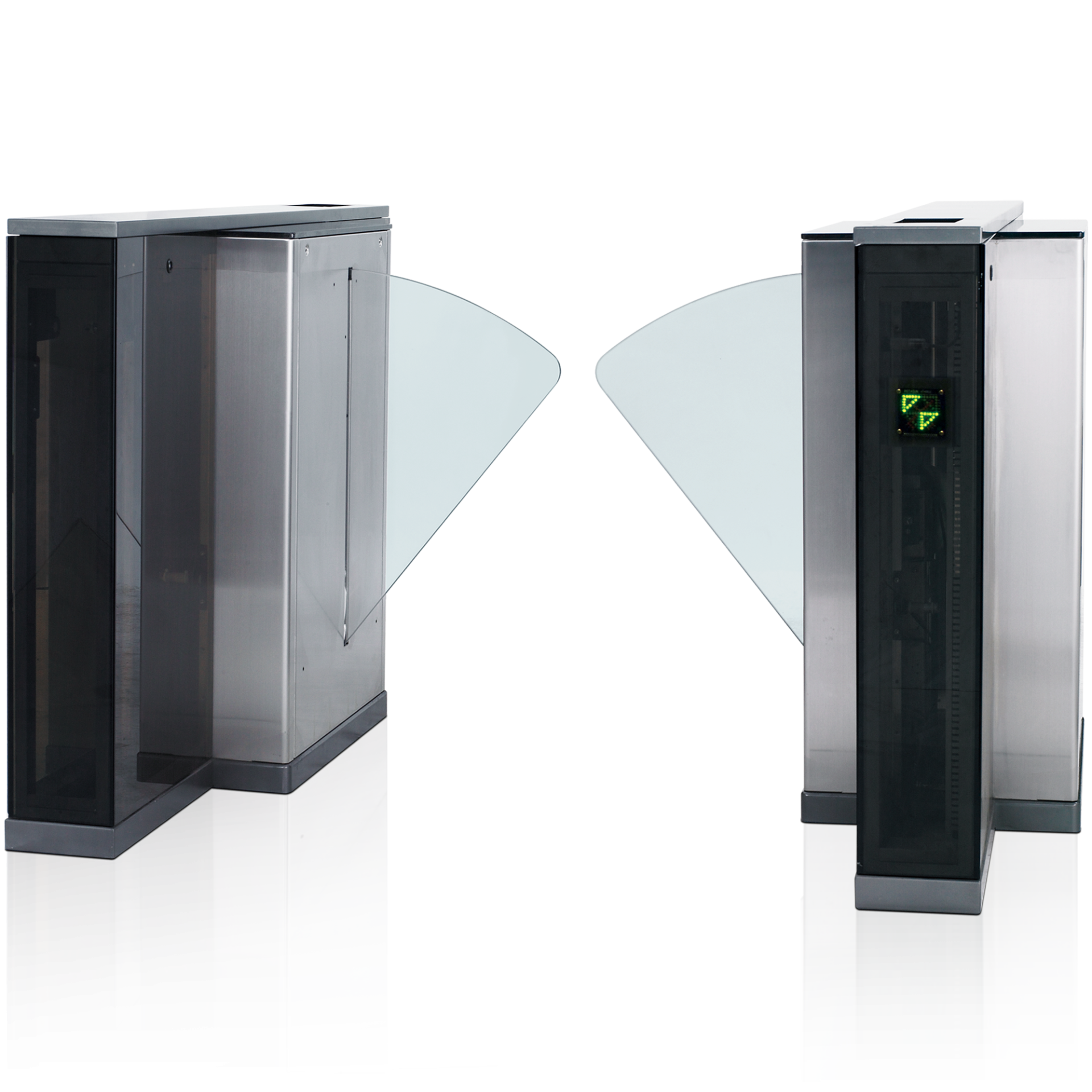

The Technology Butterfly Gate (GP-715) combines the creative aesthetics of designers with the refined craftsmanship of engineers. Its sleek, streamlined appearance and slim body embody a sense of advanced technology. The elegant design and polished finish make the gate not only a security control device but also a striking technological centerpiece that enhances the modernity and professional image of any space.
Functions and Features：
1.Slim Body with Technological Aesthetic Design
．Crafted with precision engineering to achieve a slim, well-proportioned structure that combines simplicity with refined details, showcasing a premium technological texture.
．The sleek exterior design allows the device to blend naturally into its surroundings while enhancing the overall visual appeal of the space.
2.Butterfly-Style Rapid Passage Mechanism
．Dual synchronized butterfly panels open and close smoothly and steadily.
．The fast-opening design is ideal for environments with frequent pedestrian traffic.
3.High-Precision Anti-Tailgating Detection
．Multiple infrared sensors continuously monitor passage status in real time.
．Effectively prevents tailgating, reverse entry, and unauthorized access, with instant alerts upon abnormal detection.
4.Versatile System Integration Capability
．Compatible with facial recognition, fingerprint identification, IC cards, card readers, and ticketing systems.
．Supports one-way or two-way access control settings, providing flexibility for various management modes.
5.Stable Operation and Safety Protection
．Designed for long-term, high-frequency operation, suitable for 24/7 use in public areas.
．Equipped with anti-pinch detection and automatic unlocking in emergencies to ensure user safety.
6.Applicable Environments
．Stations and transportation hubs
．Corporate headquarters and commercial buildings
．Financial institutions and access-controlled areas
．High-traffic public spaces and smart buildings
※Product specifications are subject to the actual shipment. Catalog images represent the standard model.
Functions and Features：
1.Slim Body with Technological Aesthetic Design
．Crafted with precision engineering to achieve a slim, well-proportioned structure that combines simplicity with refined details, showcasing a premium technological texture.
．The sleek exterior design allows the device to blend naturally into its surroundings while enhancing the overall visual appeal of the space.
2.Butterfly-Style Rapid Passage Mechanism
．Dual synchronized butterfly panels open and close smoothly and steadily.
．The fast-opening design is ideal for environments with frequent pedestrian traffic.
3.High-Precision Anti-Tailgating Detection
．Multiple infrared sensors continuously monitor passage status in real time.
．Effectively prevents tailgating, reverse entry, and unauthorized access, with instant alerts upon abnormal detection.
4.Versatile System Integration Capability
．Compatible with facial recognition, fingerprint identification, IC cards, card readers, and ticketing systems.
．Supports one-way or two-way access control settings, providing flexibility for various management modes.
5.Stable Operation and Safety Protection
．Designed for long-term, high-frequency operation, suitable for 24/7 use in public areas.
．Equipped with anti-pinch detection and automatic unlocking in emergencies to ensure user safety.
6.Applicable Environments
．Stations and transportation hubs
．Corporate headquarters and commercial buildings
．Financial institutions and access-controlled areas
．High-traffic public spaces and smart buildings
※Product specifications are subject to the actual shipment. Catalog images represent the standard model.
細節介紹
| Power Input | 110 ~ 240Vac, 50 / 60Hz |
|---|---|
| Body Material | SUS-304 stainless steel plate, 1.5mm thick, with brushed stainless steel surface(Optional: powder coating or titanium-plated surface treatment) |
| Gate Panel Material | 12mm transparent high-strength, impact-resistant PC gate panel |
| Digital Control | Three operation modes: Controlled / Prohibited / Free (switchable) |
| Sensors | 8 sets |
| Remote Control |
Compatible with RS-485 and TCP/IP (supports remote door control and management) |
| Body Dimensions | 1505 ( L ) X 290 / 460 ( W ) X 1000 ( H ) mm |
| Passage Dimensions | 550 / 900mm |
| Power Consumption |
Standby: 70W / Maximum: 280W |
| Current Consumption | Maximum: 2.0A / AC 220V |
| Waterproof Rating | IP43 |
| MTTR | ≤ 30 minutes |
| MCBF | ≥ 1,500,000 cycles |
| Certifications | CE |
